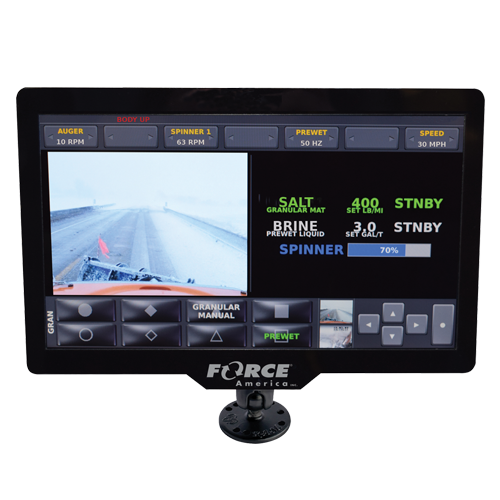

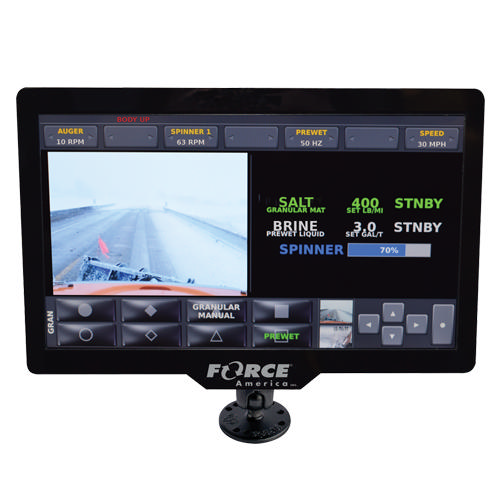

- High Resolution 10” Color LCD: Displays information-rich graphical spreader data along with up to three camera feeds eliminating the need for multiple displays within the cab.
- CAN Bus Central Processing: Provides high-level diagnostics and eliminates bulky harnessing.
- Connectivity: Plug-and-play with a single connector to a trailer system, spreader body or other slide in attachments.a
- AVL/GPS Integration Onboard: Fully integrated with PreCise® MRM hardware and antennas for accurate reporting on route, location, material application, accessory details and more. Cellular technology allows for convenient over-the-air updates, configuration and troubleshooting.
- Wireless Technology: Integrated support for PreCise MRM ARC Wireless Air & Road Conditions System

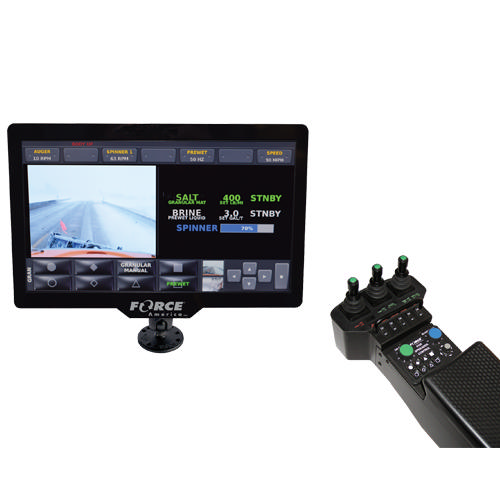

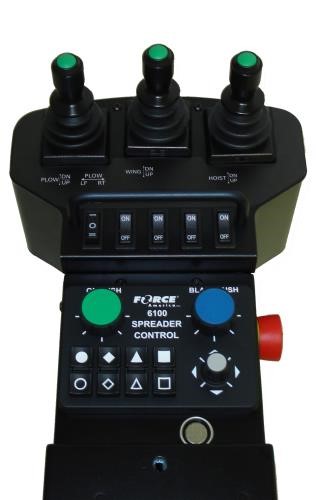

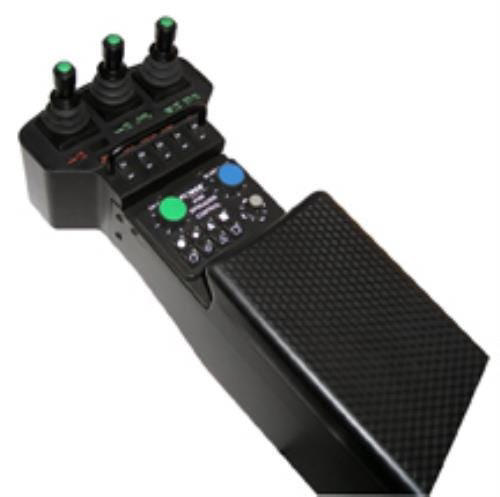

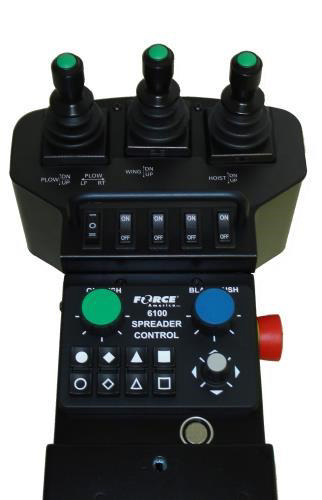

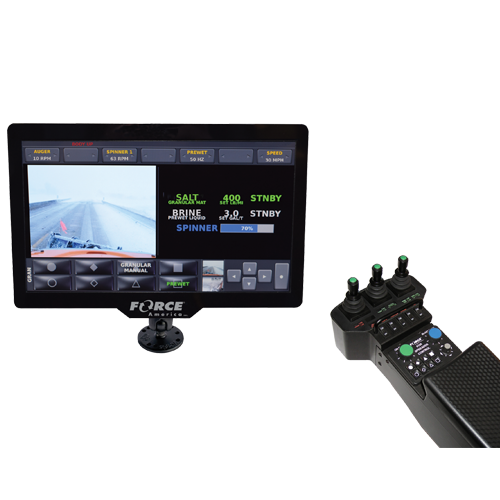

- Joystick Options: Available as a standalone spreader controller or integrated within our Patrol Commander Ultra or CommandAll Single joystick consoles.
- All components tested to rigorous SAE standards including shock and vibration, thermal shock and saturation, electro-static discharge (ESD)
- Tested to pass demanding CISPR 25 Class 4 levels for RFI and EMC
- High-resolution 1024X600 wide-format 10.0" Color Touchscreen, Capacitive
- Color-coded silicone keypad
- CAN Bus connections for on-chassis modules such as:
- Patrol Commander Ultra proportional joystick control
- CommandAll Single proportional joystick control
- 10 Port Valve Module
- 20 Port Valve Module
- 3-Lane Direct Liquid Application Module
- ISOBUS with CAN breakaway connector for slide-in or detachable equipment
- Onboard 4G cellular, GPS, and 2.4 Ghz 802.15.4 wireless connection
- Material Application Modes:
- Granular & Pre-Wet
- Direct
- Simultaneous Granular, Pre-Wet, & Direct
- Skip Sanding
- Adjustable Gate and Two Position Gate
- Directional Spinner/Spread Pattern Control
- Tow Plow Position and Application Control
- Aux Power mode with selectable ramp time
- Distance Measurement
- Individually customizable material settings, including LBS/MI set rates and selectable number of set rates
- Real-time vehicle health monitoring and response systems
- Real-time material usage and GPS tracking with PreCise MRM website
- Firmware upgrades and Calibration Settings Import and Export through USB Flash Drive
- Over 100 more fully-configurable features
- Pressure Sensor Readings
- Multiple Float Configurations
Hardware:
Software:
