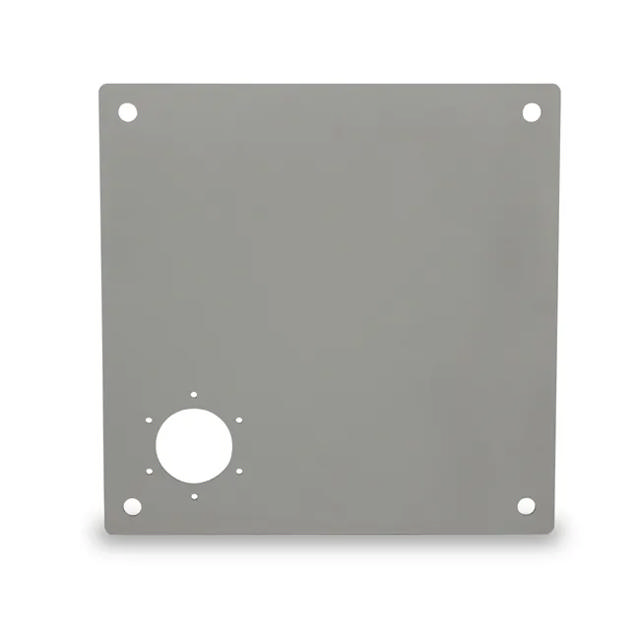

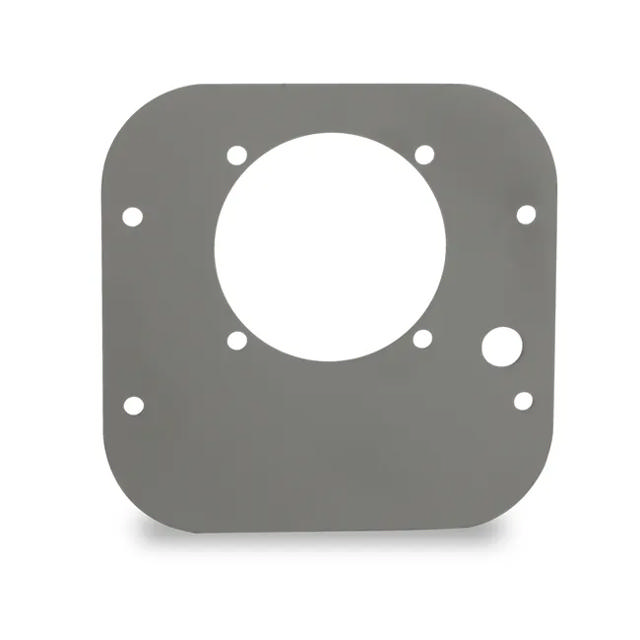

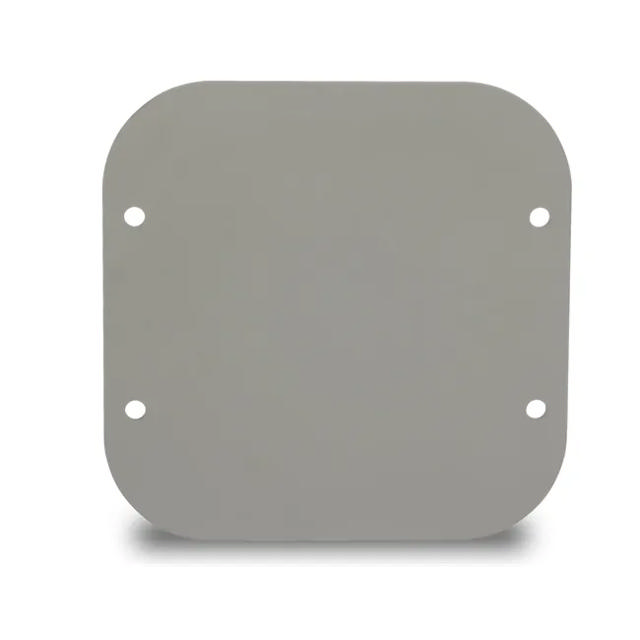

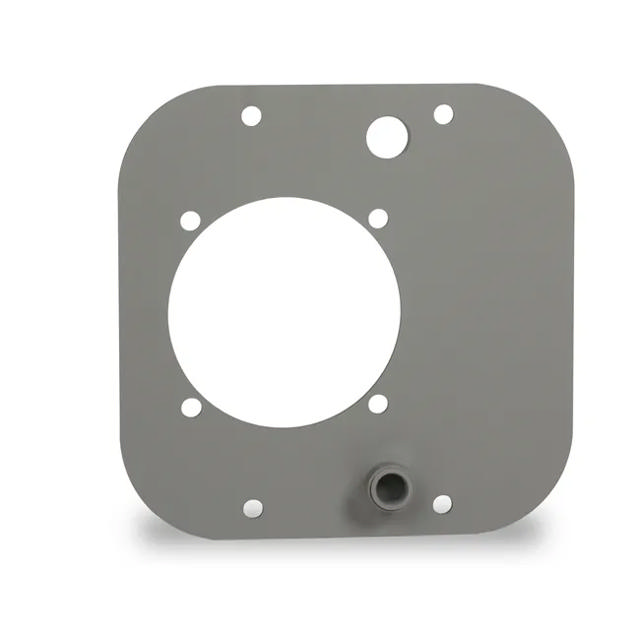

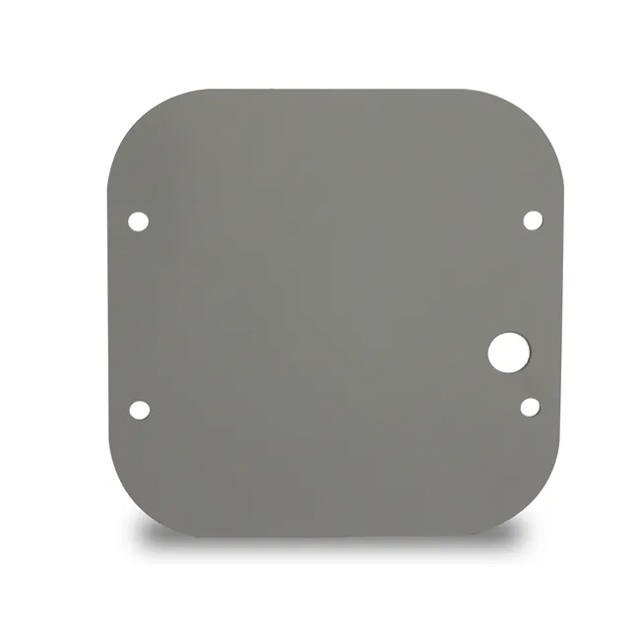

LDI's standard offering of cover plates for vertical series reservoirs range from just a blank cover with mounting holes for fastening to reservoir to additional cut out detail for mounting a pump motor adapter, filler/breather and more. Standard Features - Series 1 Covers: 7 Ga (.1793 inch) thick Mate with reservoirs V215145 and V215146 All covers come with (4) .50 inch diameter clearance holes for mounting to reservoir 5201 top mount, standard flow filler breather included Top and sides prime painted LDI gray Filler breather cut Four different configurations are available. Blank cover Cover with filler breather cut out Cover with filler breather and 56C/145TC adapter cut outs Cover with filler breather and 182TC/256TC adapter cut outs Filler breather provided loose with cover Standard Features - Series 2 Covers: Series 2 and 2A covers differ only by location of cut out for filler breather .25 inch thick Mate with reservoirs V215147, V215148, V215149, V215188 and V215189 All covers come with (4) .50 inch diameter clearance holes for mounting to reservoir 5201 top mount, standard flow filler breather included Top and sides prime painted LDI gray Five different configurations are available. Blank cover Cover with filler breather cut out Cover with filler breather and 56C/145TC adapter cut outs (Adapter Style 1, 1A and 1B) Cover with filler breather and 182TC/256TC adapter cut outs (Adapter Style 7) Cover with filler breather and 182TC/256TC adapter cut outs (Adapter Style 6) Filler breather provided loose with cover Standard Features - Series 2A Covers: Series 2A and 2 covers differ only by location of cut out for filler breather .25 inch thick Mate with reservoir V215173 All covers come with (4) .50 inch diameter clearance holes for mounting to reservoir 5201 top mount, standard flow filler breather included Top and sides prime painted LDI gray Five different configurations are available. Blank cover Cover with filler breather cut out Cover with filler breather and 56C/145TC adapter cut outs (Adapter Style 1, 1A and 1B) Cover with filler breather and 182TC/256TC adapter cut outs (Adapter Style 7) Cover with filler breather and 182TC/256TC adapter cut outs (Adapter Style 6) Filler breather provided loose with cover Standard Features - Series 3 Covers: Mate with reservoirs V215174, V215175, V215176, V215195 and V215196 .25 inch thick All covers come with (4) .50 inch diameter clearance holes for mounting to reservoir 5201 top mount, standard flow filler breather included Top and sides prime painted LDI gray Five different configurations are available. Blank cover Cover with filler breather cut out Cover with filler breather and 56C/145TC adapter cut outs (Adapter Style 1, 1A and 1B) Cover with filler breather and 182TC/256TC adapter cut outs (Adapter Style 7) Cover with filler breather and 182TC/256TC adapter cut outs (Adapter Style 6) Filler breather provided loose with cover Standard Features - Series 4 Covers: Mate with reservoirs V29902, V29903, V29905, V29908, V29910, V29914, V29920, V29925 7 Ga (.1793 inch) thick All covers come with (4) .50 inch diameter clearance holes for mounting to reservoir PMB-07-10 mini breather included Top and sides prime painted LDI gray Five different configurations are available. Blank cover Cover with 3/4 inch NPT port for breather Cover with 3/4 inch NPT port for breather and 56C/145TC adapter cut out Cover with 3/4 inch NPT port for breather and 56C/145TC adapter cut out and 1/2 inch NPT full coupling Cover with 3/4 inch NPT port for breather and 182TC/256TC adapter cut out Breather provided loose with cover Temperature Rating: -20° to 150° F (-28° to 65° C) for Style 1, 2 & 3 covers -20° to 220° F (-28° to 104° C) for Style 4 covers
