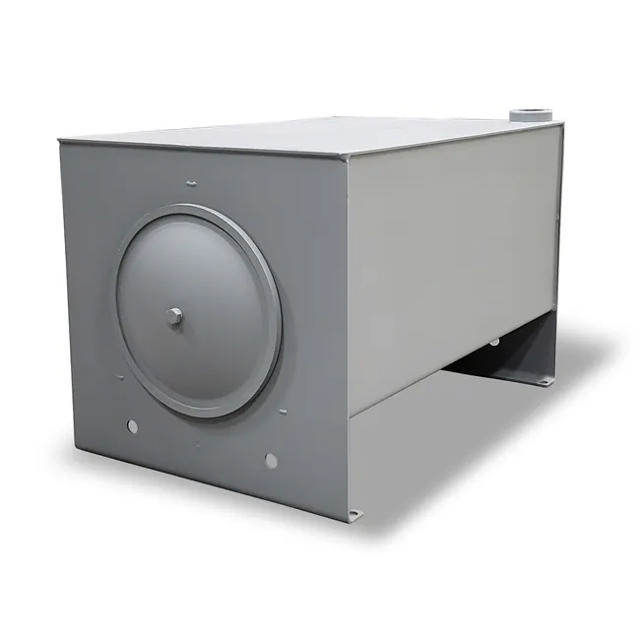

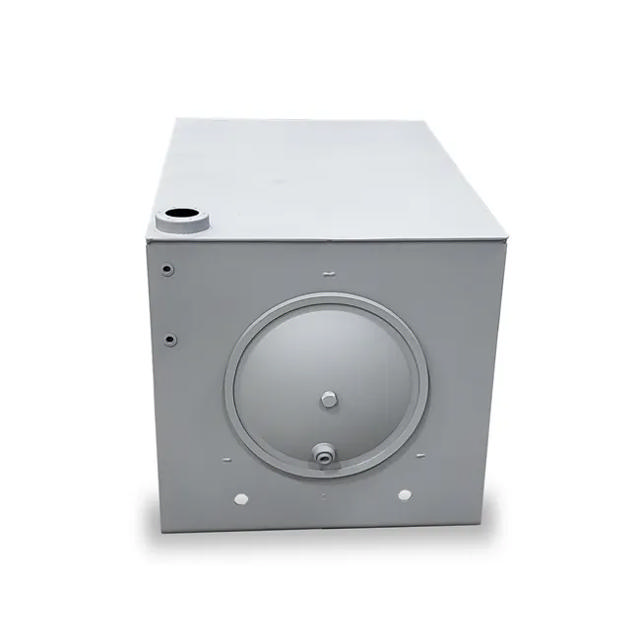

The Style A Series JIC type reservoirs are constructed with a welded top and clean-out access on each end. The reservoir design incorporates a lengthwise baffle positioned between opposing clean-out openings. Each reservoir is supplied with a sight gauge, filler breather and access covers. Standard Features: Reservoir capacities ranging from 10 to 700 gallons Clean-out access on each end (one access cover has built-in 3/4 inch NPT drain port) Reservoir is elevated six inches above mounting surface Internal baffle positioned lengthwise between clean-out openings with circulation passages Reservoir bottom sloped toward center baffle Exterior painted with a LDI gray primer Interior coated with rust preventative oil 5 inch front mount GT623 Series sight gauge (less than 300 gallons) 10 inch front mount G1615 Series sight gauge (300 gallon and above) Card thermometer integral to sight gauge, dual scale 0° to 220°F and -20° to 110°C graduations 5275 riser for mounting 5201 filler breather Sight gauge and filler breather provided loose with reservoir Temperature Rating: Industry accepted design practice for hydraulic systems limits maximum operating temperature to 180° F (82° C), but materials used for fabrication of the reservoirs are capable of operating between -40° and 212° F (-40° and 100° C). Caution: Reservoirs are not designed for internal positive or negative pressure applications. For these applications, consult the factory.
