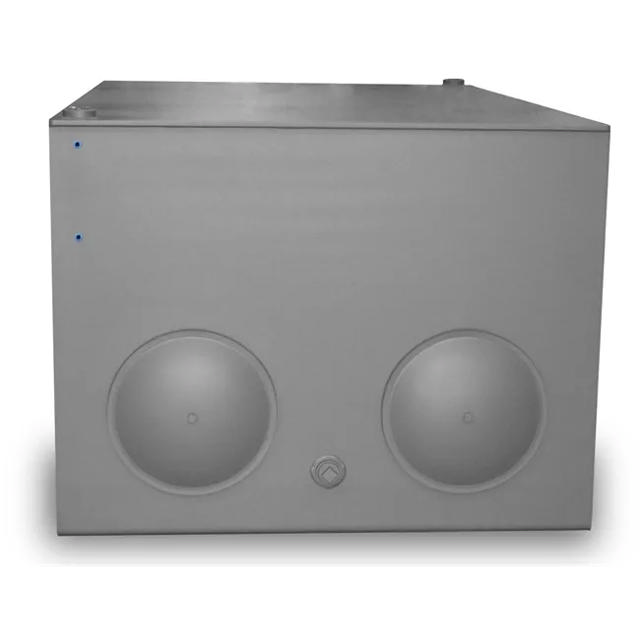

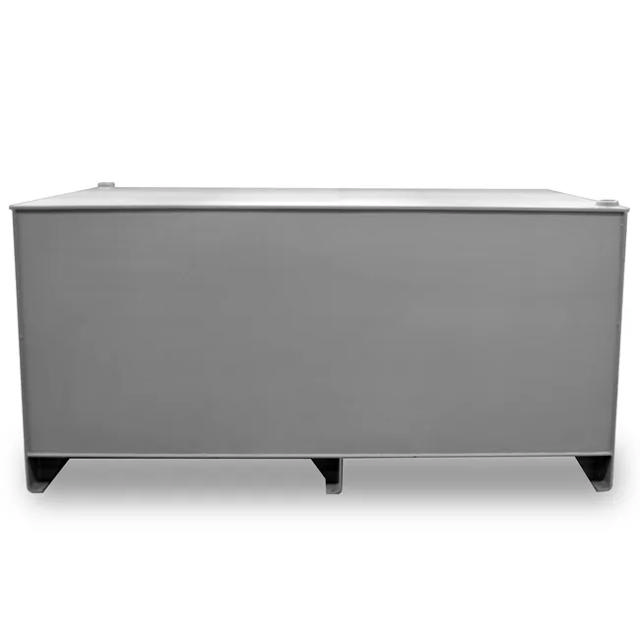

The Jumbo Series JIC type reservoirs are designed for large capacity systems. Construction consists of a welded top and multiple openings to access the inside of the reservoir. The reservoir design incorporates two lengthwise baffles positioned between opposing clean-out openings. Each reservoir is supplied with sight gauges, filler breathers and access covers. Standard Features: Reservoir capacities ranging from 800 to 1000 gallons Four clean-out openings (two on each end) Two, 2 inch NPT drains (one on each end) Reservoir is elevated six inches above mounting surface Two Internal baffles positioned lengthwise between clean-out openings with circulation passages Exterior painted with a LDI gray primer Interior coated with rust preventative oil Two, 10 inch front mount G1615 Series sight gauges Card thermometer integral to sight gauge, dual scale 0° to 220°F and -20° to 110°C graduations Two, 5275 risers for mounting the 5201 filler breathers Sight gauges and filler breathers provided loose with reservoir Temperature Rating: Industry accepted design practice for hydraulic systems limits maximum operating temperature to 180° F (82° C), but materials used for fabrication of the reservoirs are capable of operating between -40° and 250° F (-40° and 121° C) Caution: Reservoirs are not designed for internal positive or negative pressure applications. For these applications, consult the factory.
