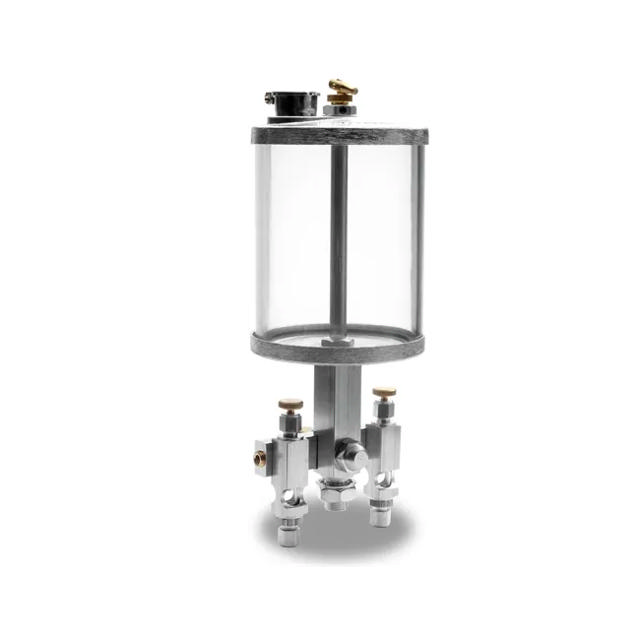

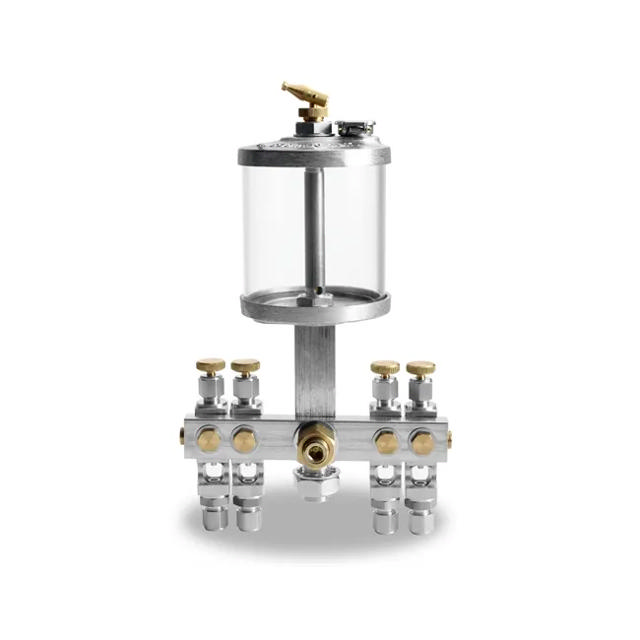

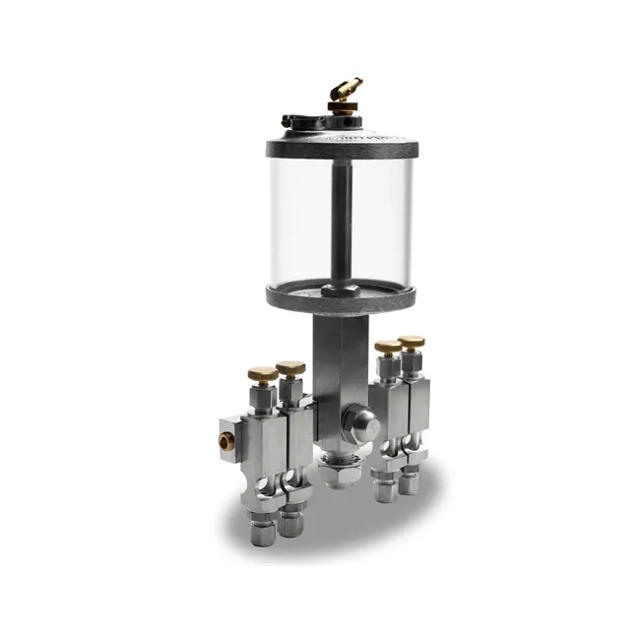

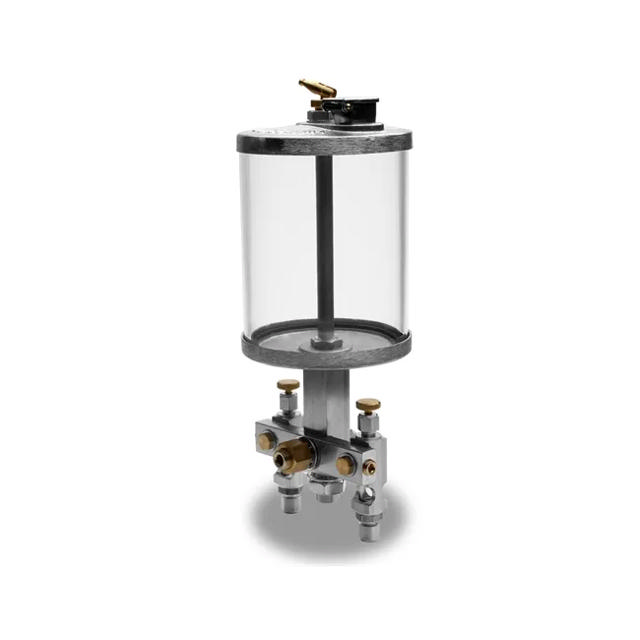

The RDM Series of multiple feed, large capacity reservoirs with central mounting shank provide for controlled lubrication for up to 30 points from one location. Manually operated toggle lever at the top of reservoir controls on/off full flow of oil to valves. Valve drip feed rate is individually set at each valve. Large reservoir provides 360° viewing at a glance. Fill cap with side vent minimizes the possibility of dust and dirt entering the reservoir. Units with odd number of feeds will be furnished with greater number of feeds to the right side unless otherwise specified. Standard Features: 5/8 inch UNF stud end Temperature & Pressure Ratings: Maximum working temperature up to 140°F (60°C) Rating is at atmospheric pressure
