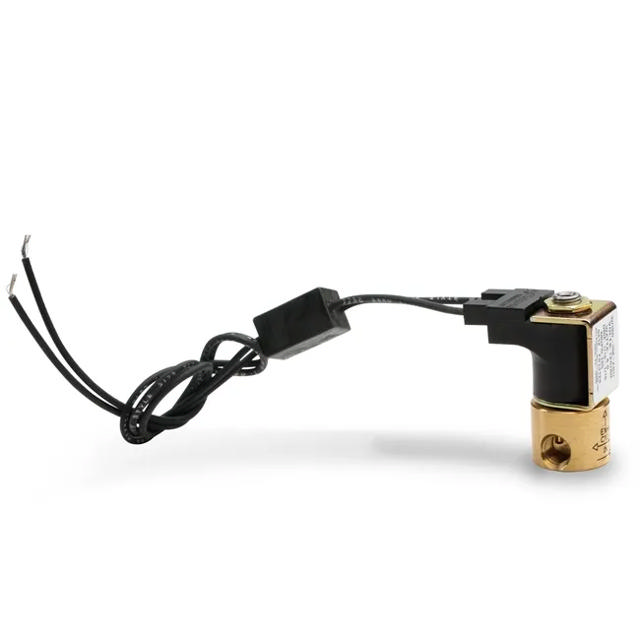

This compact low wattage 3-way valve is ideally suited for operating the PMP100. This 3-way valve should be mounted close to the PMP100 to insure a fast response time and minimize the quantity of compressed air used. Standard Features: 1/8-27 NPT inlet and outlet ports 1/16 inch diameter orifice #10-32UNF-2B exhaust port #20 AWG lead wires, 18 inches long Operating Conditions: For operation on 120V, 60Hz, 1Ph; 6W 125 PSIG max working pressure -40°F(-40°C) to +180°F(+82°C) media temperature +311°F(+155°C) max coil operating temperature
