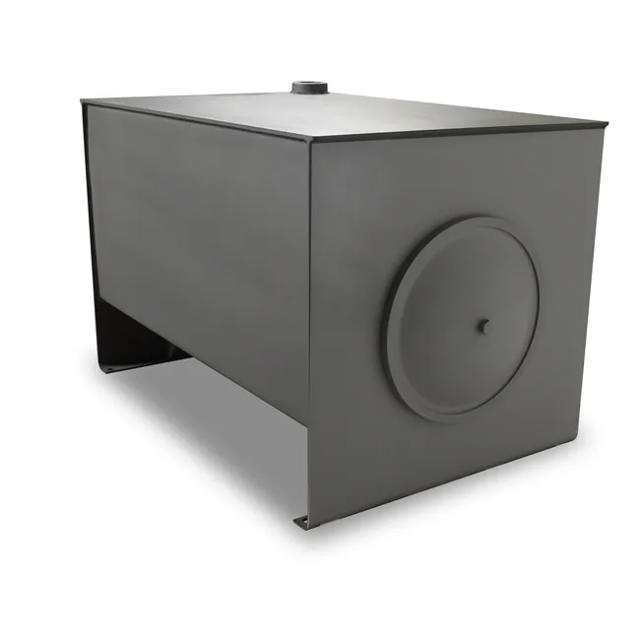

The Style B Series JIC type reservoirs are constructed with a welded top and clean-out access on each end. The reservoir design incorporates a lengthwise baffle positioned between opposing clean-out openings. Each reservoir is supplied with a sight gauge, filler breather and access covers. Style B reservoirs are similar to the Style A Series, but incorporate design features common to the Jumbo Series reservoirs. Standard Features: Reservoir capacities ranging from 10 to 400 gallons Clean-out access on each end (one access cover has built-in 3/4 inch NPT drain port) Reservoir is elevated six inches above mounting surface Internal baffle with circulation passages positioned lengthwise between clean outs Reservoir bottom sloped toward center baffle Exterior painted with a LDI gray primer Interior coated with a rust preventative oil 5 inch front mount GT623 Series sight gauge Card thermometer integral to sight gauge, dual scale 0° to 220°F and -20° to 110°C graduations Filler Breather Weld Riser for mounting 5201 Top Mount, Stand Flow Filler Breather 400 gallon reservoir has an additional baffle, drain and set of clean-out access openings Sight gauge and filler breather provided loose with reservoir Temperature Rating: Industry accepted design practice for hydraulic systems limits maximum operating temperature to 180° F (82° C), but materials used for fabrication of the reservoirs are capable of operating between -40° and 250° F (-40° and 121° C). Caution: Reservoirs are not designed for internal positive or negative pressure applications. For these applications, consult the factory.
