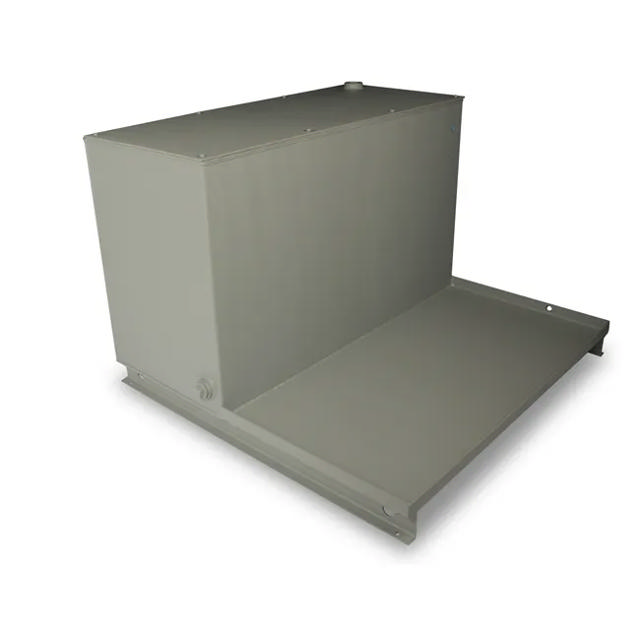

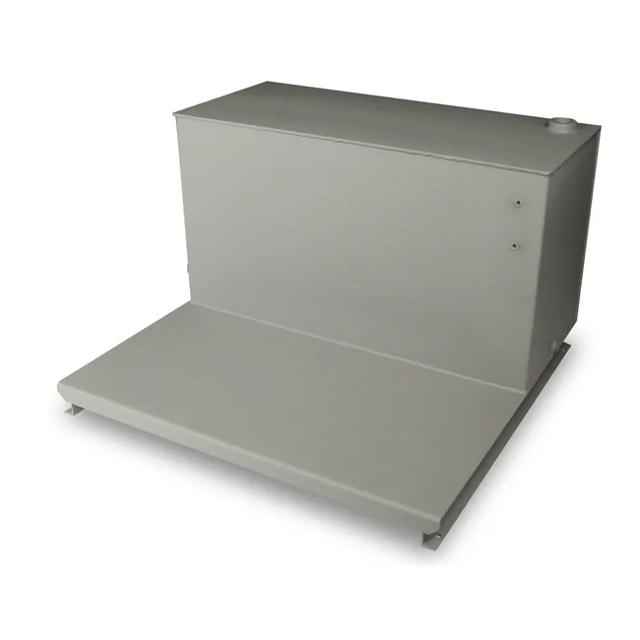

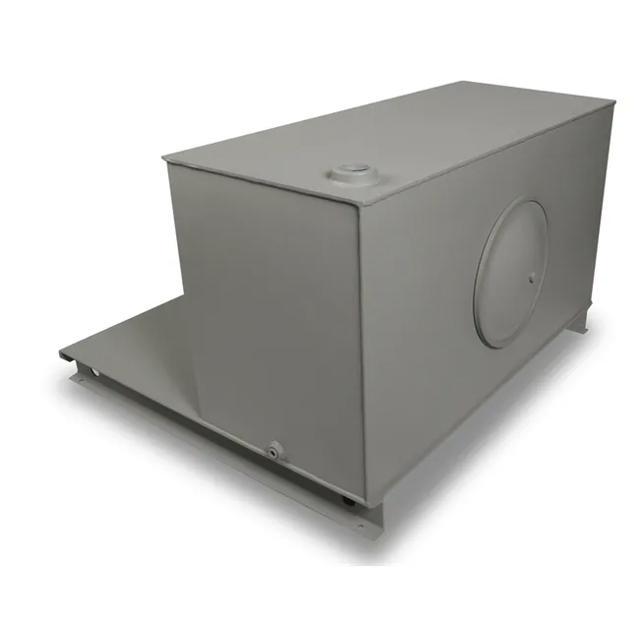

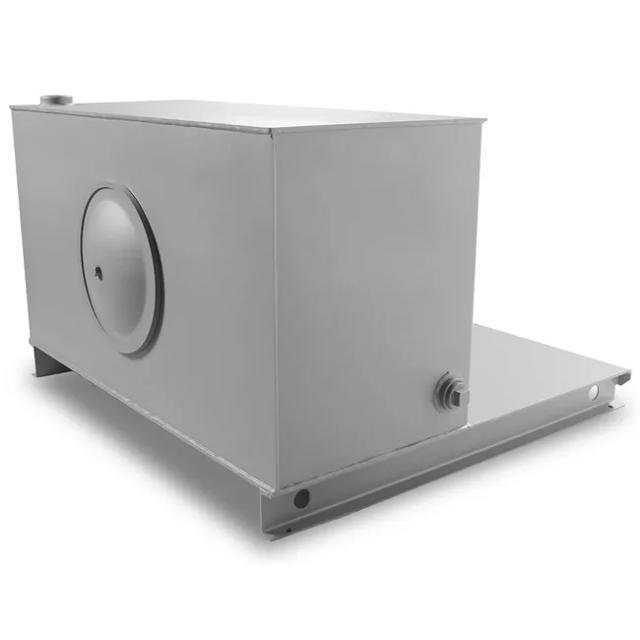

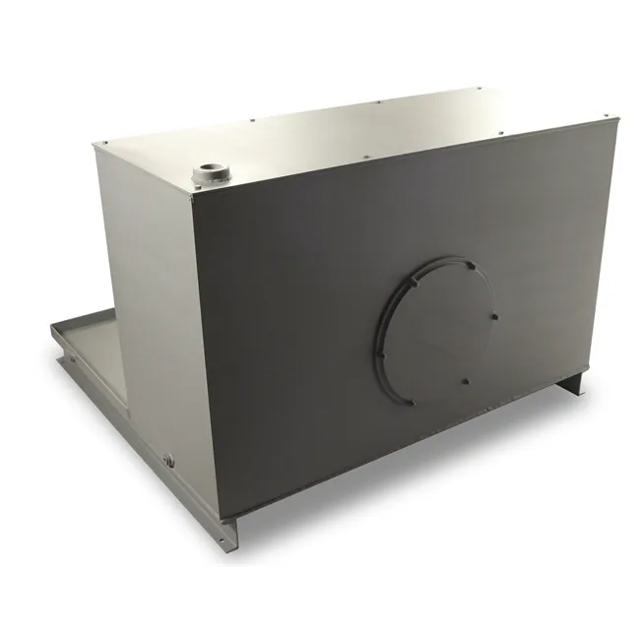

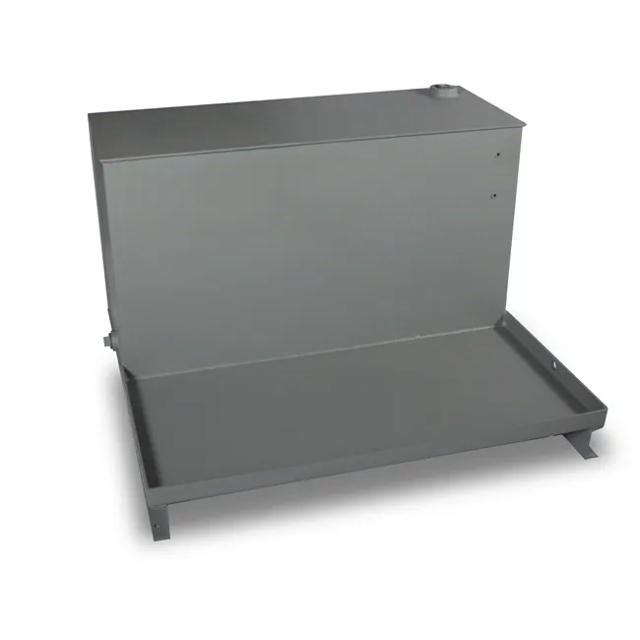

The Style D, L-Shaped Series provides users with a vertical reservoir and an adjacent platform for mounting system components. The Style D reservoirs can be customized with standard construction options including a bolt-on or welded cover, variable platform lengths, with or without access covers (DIN or stamped) and with base kick plate or containment tray. The reservoir and platform are fully supported by and welded to a skid allowing for most system assemblies to be completed remotely and then transported to another location for drop in installation. Standard Features: Reservoir capacities ranging from 10 to 200 gallons Channel gasket installed on reservoirs with bolt-on top Mounting hardware is supplied with bolt-on tops Reservoir bottom is flat (1) 3/4 inch NPT drain (plugged) (1) return connection from 1/2 to 2 inch NPT depending on reservoir capacity Platform base plate thicknesses range from 7 Ga to .38 inch 3 inch wide kick plate on front of skid on reservoirs without containment tray Access covers for reservoir capacity <80 gallons: 12 inch dia steel baffle mount or cast bolt mount, 16 inch dia stamped or cast DIN449 on larger capacity reservoirs Exterior painted with a LDI gray primer Interior coated with rust preventative oil 5 inch back mount G1620 Series sight gauge Card thermometer integral to sight gauge, dual scale 0° to 220°F and -20° to 110°C graduations Top mount, standard flow filler breather Sight gauge and filler breather provided loose with shipment Temperature Rating: Industry accepted design practice for hydraulic systems limits maximum operating temperature to 180° F (82° C), but materials used for fabrication of the reservoirs are capable of operating between -40° and 250° F (-40° and 121° C). Caution: Reservoirs are not designed for internal positive or negative pressure applications. For these applications, consult the factory.
