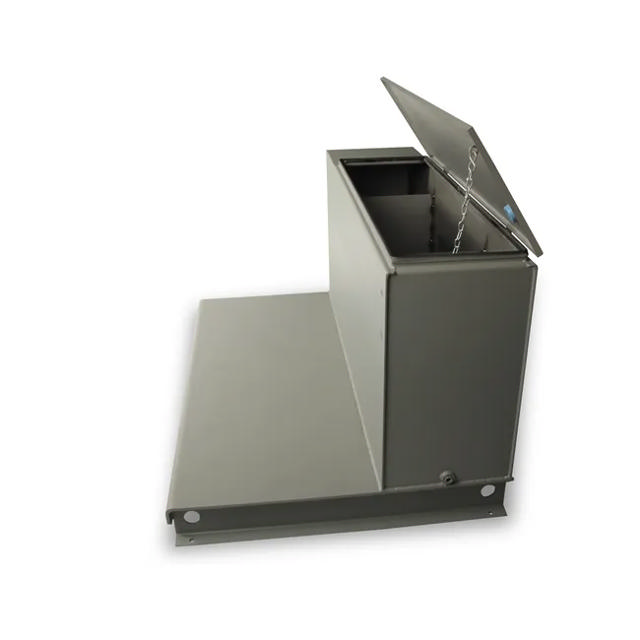

The Style F, L-Shaped Series provides users with a vertical reservoir and an adjacent platform for mounting system components. The reservoir cover is partially hinged for convenient access to the inside of the reservoir, but also has a welded section designed for mounting accessories directly to the top of the reservoir. The reservoir and platform are fully supported by and welded to a skid allowing for most system assemblies to be completed remotely and then transported to another location for drop in installation. Standard Features: Reservoir capacities ranging from 80 to 600 gallons Channel gasket installed Reservoir covers are secured with multiple T-handle latches and supported by chain when opened Reservoir bottom is flat (1) 3/4 inch NPT drain (plugged) Platform base plate thicknesses range from .38 to .50 inch 3 inch wide kick plate on front of skid Exterior painted with a LDI gray primer Interior coated with rust preventative oil 5 inch back mount G1620 Series sight gauge (less than 300 gallons) 10 inch back mount G1620 Series sight gauge (300 gallon and above) Card thermometer integral to sight gauge, dual scale 0° to 220°F and -20° to 110°C graduations Top mount, standard flow filler breather Sight gauge, filler breather and T-handles provided loose with shipment Temperature Rating: Industry accepted design practice for hydraulic systems limits maximum operating temperature to 180° F (82° C), but materials used for fabrication of the reservoirs are capable of operating between -40° and 250° F (-40° and 121° C). Caution: Reservoirs are not designed for internal positive or negative pressure applications. For these applications, consult the factory.
