Style RT Series Reservoir Top
Overview
Specifications

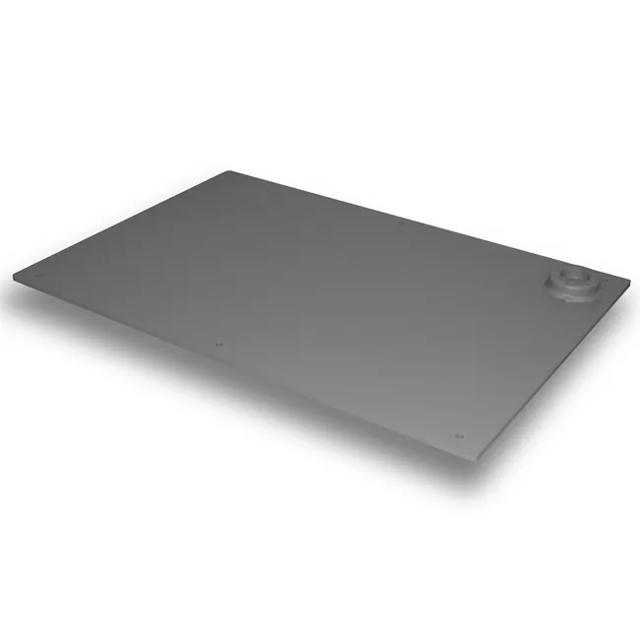

The Style RT Reservoir Top Series provides users with multiple options of cover thickness for each size Style RT reservoir. The reservoir tops have pre-drilled mounting holes and a welded riser for mounting a filler breather provided loose with each reservoir top. Reservoirs are sold separately.
Standard Features:
Mate with Style RT Series reservoirs ranging in size from 10 to 210 gallons
Depending on reservoir capacity, cover thickness ranges from 1/4 to 1.00 inch thick
Exterior and side surfaces painted with LDI gray primer
Interior surface coated with a rust preventative oil
5275 filler breather weld riser for mounting 5201 top mount, standard flow filler breather
Filler breather provided loose with reservoir top
Temperature Rating:
Industry accepted design practice for hydraulic systems limits maximum operating temperature to 180° F (82° C), but materials used for fabrication of these components are capable of operating between -40° and 250° F (-40° and 121° C).
